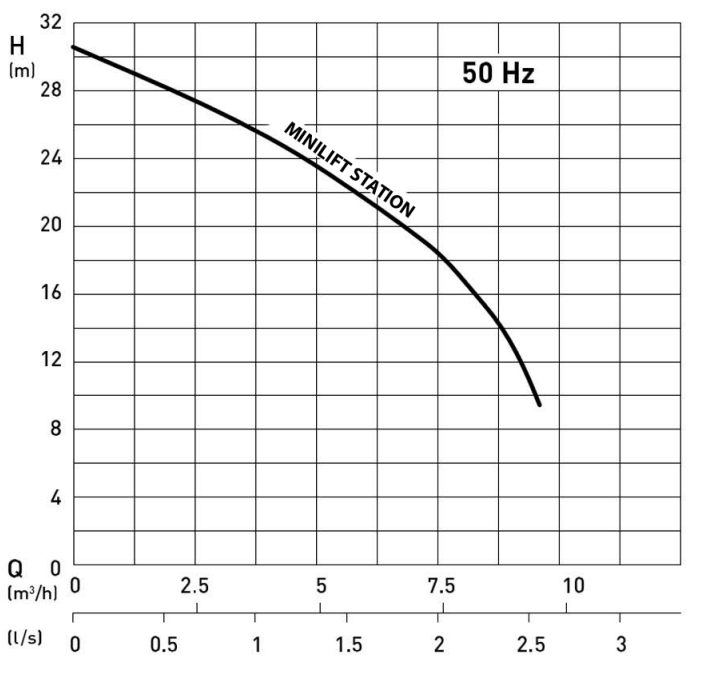

minilift pumpcurve
Previous
Next

The MinilIFT PUMP STATION

product applications

The MiniLift is a durable above-ground pump station, the system is designed as a double lifting station and is completely flood-proof.  The MiniLift is used for automatic sewage pumping from areas below the backwash level in accordance with EN 1 2050-1.

The MiniLift is used for reliable and economical discharge of wastewater under pressure using small diameter discharge lines. Suitable for new installations or for renovation of old buildings.

The system is supplied with a synthetic, corrosion-resistant, gas- and odour-tight tank, in accordance with EN 12050-1, pumps, non-return valves and control panel with automatic level control and alarm (pipework not included). The total capacity of the system is 130 litres.

HOSPITALITY

COMMERCIAL

INDUSTRIAL

PICKUP

Product ready for collection within 3-5 days

Delivery

Product shipped nationwide in 3-5  days

Support

Product support available between 8:30am -5pm

  • High head capability
  • Fully enclosed
  • High performance pumps
  • Easy Installation
Contact us for pricing

product features

  • Ready to install out the box
  • Pre-fitted submersible pumps
  • 1 Year warranty (terms apply)
  • Non-return valve and internal pipework included
  • Up to 30 meters head capability
  • Cast iron discharge outlet with threaded flange
  • Shedding system for blockage free operation

product downloads

MiniLift Pump Station BROCHURE

Click Here

MINILIFT Pump Station - SPECIFICATIONS

DescriptionMaterial
TankPolyethylene (PE)
Motor housingCast iron EN-GJL-250
Rotor shaftStainless steel 1.4021 (AISI 420)
VoluteCast iron EN-GJL-250
ImpellerCast iron EN-GJL-250
Bottom plateCast iron EN-GJL-250
FastnersStainless steel 1.4401 (AISI 316)
Pump Data1002 D
Motor Power [Kw]*P1 = 2.3 P2 =1.7
Speed [r/min]2900
Rated voltage [V]400 3~
Rated current [A]4
Cable type [S1BN8-F]4G1.5
Cable length [m]**4
Weight [kg]***98

contact us now with your requirements

your requirements

Please fill out the form below so we can accurately quote for your system requirements.

Why do we need this information?

For us to be able to calculate a pump station correctly we need to understand a few key points of information. Please use the form to the left to help us quote for your project.

Key

Rising Main – distance from the chamber to the sewer (meters)

Head – The height from the bottom of the chamber to the sewer

People – The maximum occupancy of the property

Application – Please state if this is for foul or surface water
