The rainstation Rainwater Havesting System

Description

The RainStation is a fully contained above ground rainwater harvesting system. The RainStation is designed to collect rainwater and provide a sustainable supply for non-potable applications, such as toilet fushing, urinals, irrigation systems, wash down areas, and many other applications .
The system comes as a complete unit, ready to be installed on-site and comes packed with technology and features.

product features

  • GRP WRAS approved enclosure
  • REG4 approved variable speed booster set
  • Control panel
  • BMS connections
  • Pre-tank filtration system
  • Compact 5 Micron UV disinfection system
  • Internal sediment filter
  • Robust steel framed skid

product downloads

RainStation BROCHURE

Click Here

RainStation overview

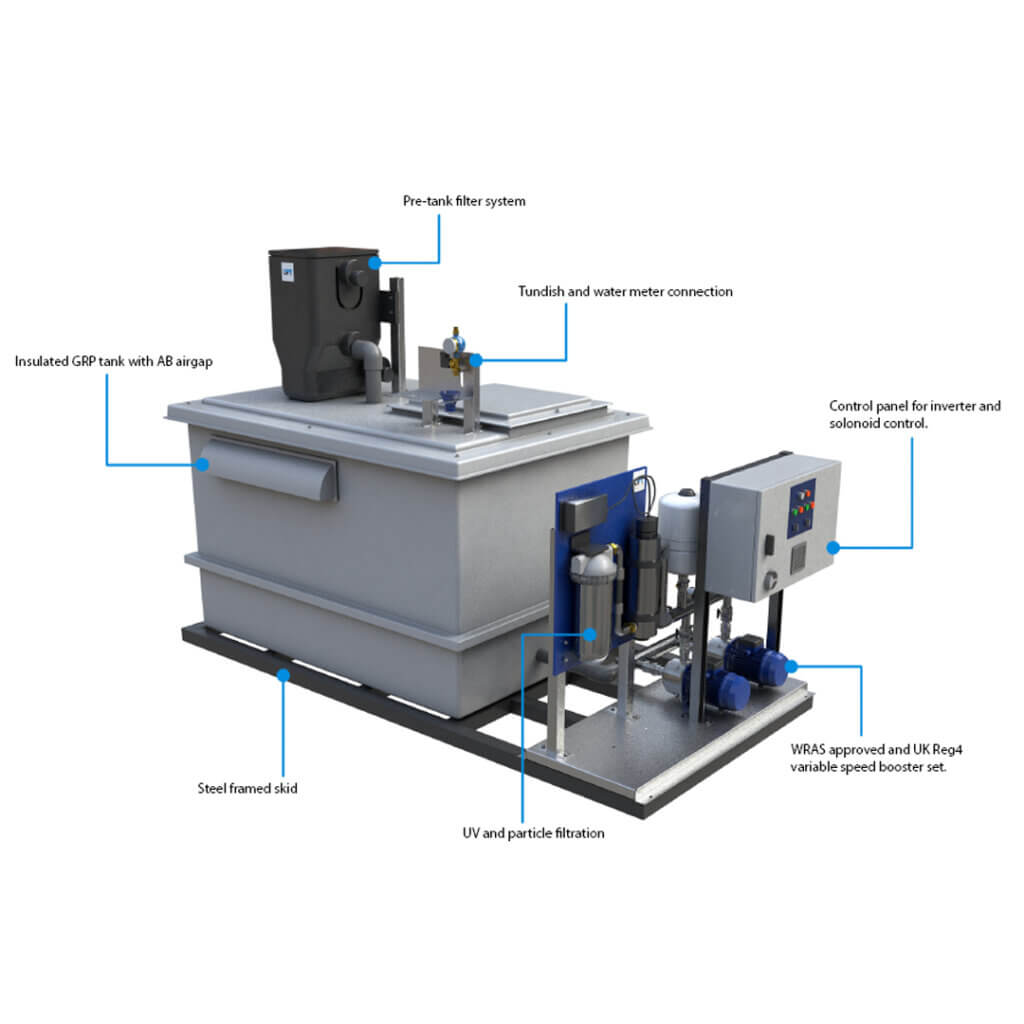

rainstation overview

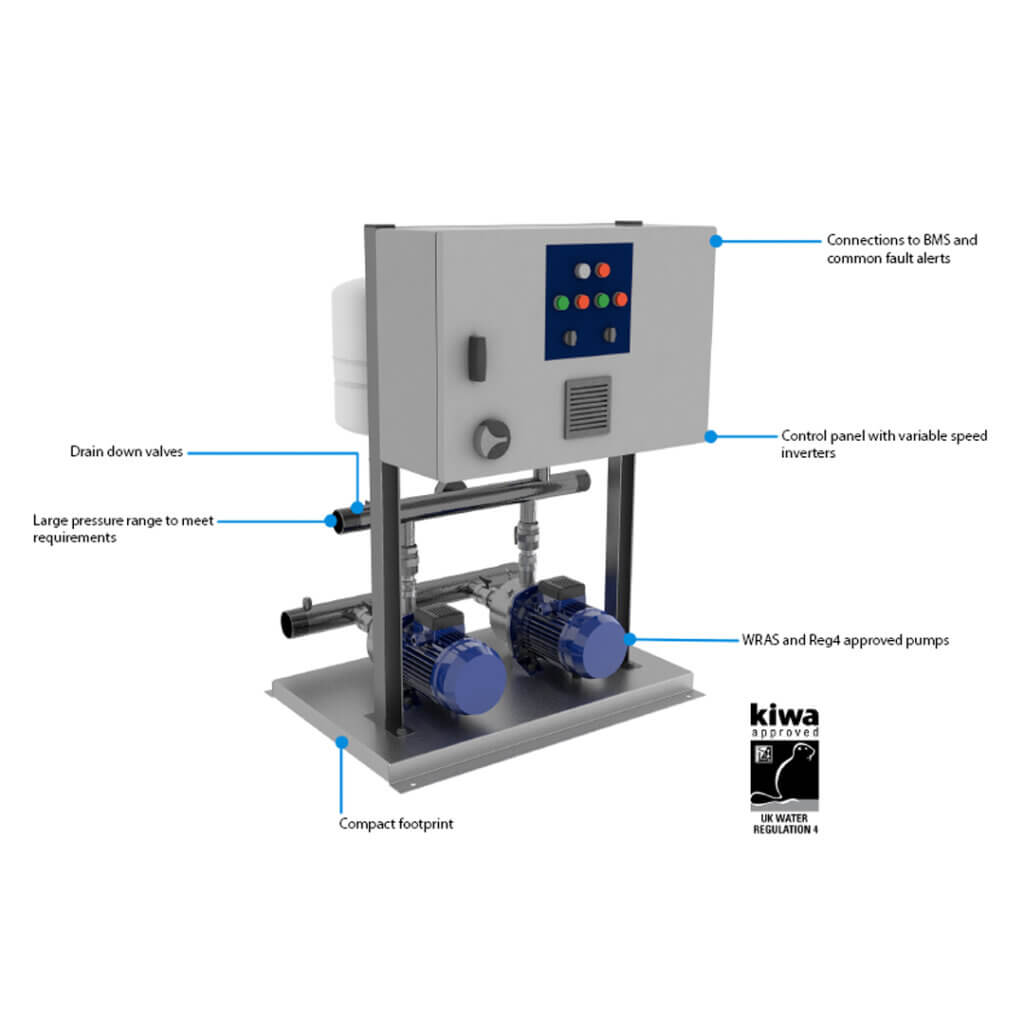

rainstation pump overview

RainStation Pump Options

Model RefMid Curve FlowMid Curve PressureDN1DN2BHH1LMPower SupplykWHPFLC (amp)
2RS302/8DPT100 l/m1.5 bar2”1½”6409001356085401x240v2x0.452x0.62x2.3
2RS305/8DPT100 l/m4.0 bar2”1½”6409001356565401x240v2x0.752x1.02x3.0
2RS306/8DPT100 l/m4.5 bar2”1½”6409001356805401x240v2x0.92x1.22x4.3
2RS307/8DPT100 l/m5.0 bar2”1½”6409001357045401x240v2x1.32x1.82x5.6
2RS308/8DPT100 l/m5.25 bar2”1½”6409001357285401x240v2x1.32x1.82x5.6
2RS502/8DPT150 l /m1.75 bar2”1½”6409001356085401x240v2x0.452x0.62x2.3
2RS505/8DPT150 l /m4.5 bar2”1½”6409001356565401x240v2x1.32x1.82x5.6
2RS506/8DPT150 l /m5.0 bar2”1½”6409001356805401x240v2x1.32x1.82x5.6
2RS507/8DPT150 l /m6.5 bar2”1½”6409001357045401x240v2x1.52x2.02x6.3
2RS508/8DPT150 l /m7.0 bar2”1½”6409001357285401x240v2x2.22x3.02x8.2
2RS1002/8DPT320 l/m1.8 bar2½”2”6409501356275401x240v2x0.752x1.02x3.0
2RS1003/8DPT320 l/m2.5 bar2½”2”6409501356895401x240v2x1.32x1.82x5.6
2RS1004/8DPT320 l/m3.5 bar2½”2”6409501357085401x240v2x1.52x2.02x6.3
2RS1005/8DPT320 l/m4.0 bar2½”2”6409501357225401x240v2x2.22x3.02x8.2
2RS1006/8DPT320 l/m5.0 bar2½”2”6409501357395401X240V2x2.22x3.02x8.2

contact us now with your requirements

your requirements

Please fill out the form below so we can accurately quote for your system requirements.

Why do we need this information?

For us to be able to calculate a Rain Water Harvesting Station  correctly we need to understand a few key points of information. Please use the form to the left to help us quote for your project.

Key

Roof Area – The total square meter measurement of the roof

Number of WC – Self explanatory.

Number of Washing Machines – Self explanatory.

Number of Outside Taps – Self explanatory.

Number of floors – Self explanatory.
