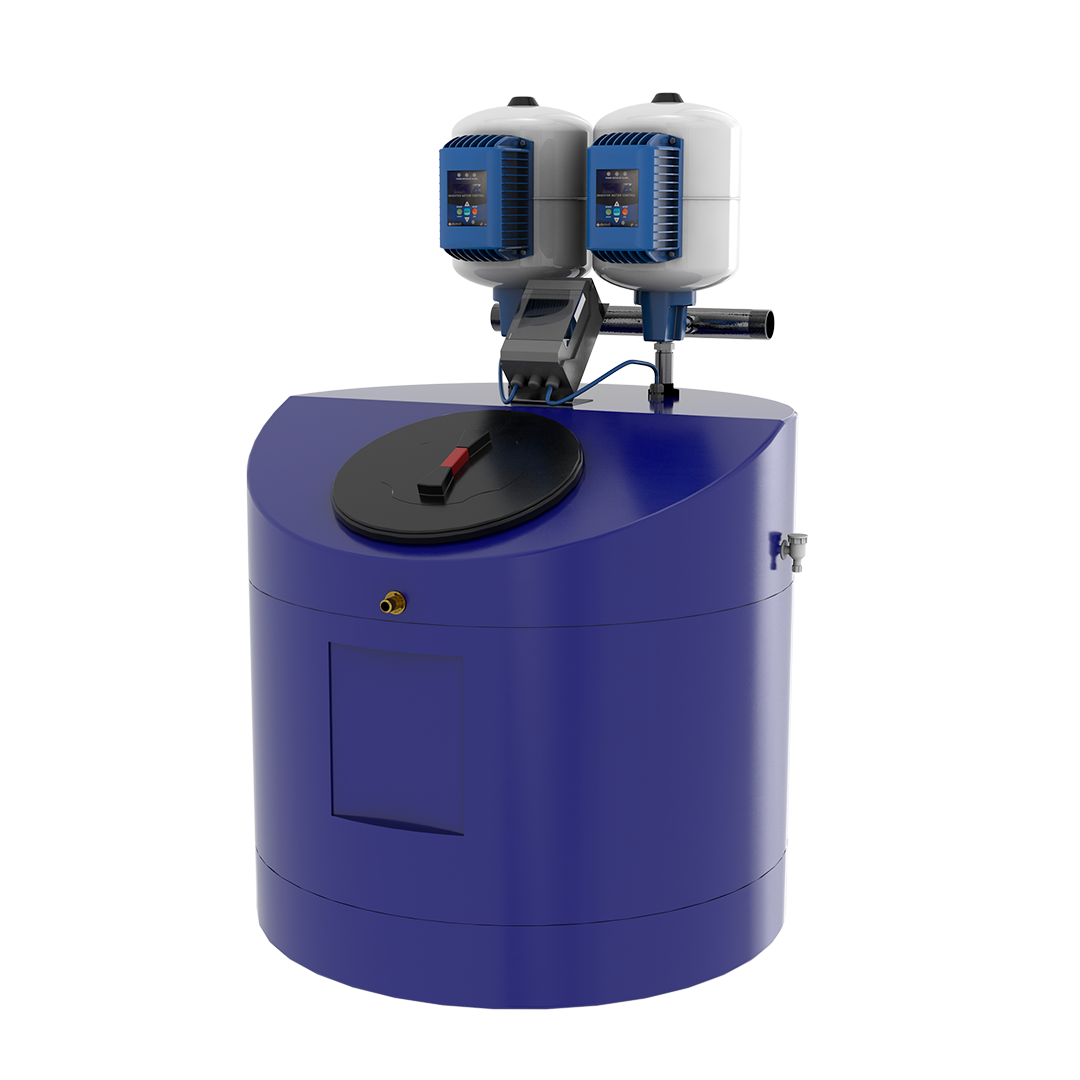

aquamaxx twin
Previous
Next

AQUAMAXX DOMESTIC BOOSTER SET

The AquaMaxx Domestic Booster Set has been specifically designed to supply potable water to homes where water flow and mains pressure is insufficient. The AquaMaxx Domestic booster set comes complete with a variable speed inverter and high-efficiency motor(s) control and a powerful submersible WRAS approved pump(s). The Break tank is built from high grade MDPE.

product applications

DOMESTIC

HOSPITALITY

COMMERCIAL

INDUSTRIAL

PICKUP

Product ready for collection within 48 hours

Delivery

Product shipped nationwide in 48 hours

Support

Product support available between 8:30am -5pm

  • Flow rates up to 120 l/m
  • Pressure to 6.5 bar
  • Storage up to 1200 litres
  • Variable speed inverters
Contact us for pricing

product features

  • Non-corrosive WRAS approved tanks
  • Kiwa REG4 certified product
  • Pre-fitted WRAS approved fill valve
  • WRAS approved pump(s)
  • Integral overflow weir
  • Digital display flow controller
  • Dry run protection with auto restart time delay
  • WRAS approved inverter and vessel

product downloads

AQUAMAXX DIMENSIONS AND CAPACITY

Tank CapacityPump ArrangementDiameter (mm)Height (mm)InletOutlet (Single)Outlet (Twin)Overflow
300LSingle61016751/2” BSP1” BSPN/A22mm
450LSingle61021751/2” BSP1” BSPN/A22mm
550LSingle/Twin78016751/2” BSP1” BSP2 x 1 1/4”22mm
750LSingle/Twin78021751/2” BSP1” BSP2 x 1 1/4”22mm
800LSingle/Twin100014251/2” BSP1” BSP2 x 1 1/4”22mm
1200LSingle/Twin100019251/2” BSP1” BSP2 x 1 1/4”22mm

AQUAMAXX SINGLE TECHNICAL DETAILS

Model NumberMid Curve FlowMid Curve PressurekW RatingRunning Current (amp)Supply VoltageInletOutletOverflow SizeDry Weight
FV40/10S40 l/min4.5 bar0.753.81 ph 230v 50 hz1/2" BSP1”22mm74kg
FV40/15S40 l/min6.5 bar1.15.21 ph 230v 50 hz1/2" BSP1”22mm76kg
FV80/15S60 l/min4.5 bar1.15.41 ph 230v 50 hz1/2" BSP1”22mm78kg
FV80/20S60 l/min5.8 bar1.56.11 ph 230v 50 hz1/2" BSP1”22mm80kg

AQUAMAXX TWIN TECHNICAL DETAILS

Model NumberMid Curve FlowMid Curve PressurekW RatingRunning Current (amp)Supply VoltageInletOutletOverflow SizeDry Weight
FV40/10T80 l/min4.5 bar2 x 0.752 x 3.81 ph 230v 50 hz1/2" - 1"1 1/4”22mm94kg
FV40/15T80 l/min6.5 bar2 x 1.12 x 5.21 ph 230v 50 hz1/2" - 1"1 1/4”22mm96kg
FV80/15T120 l/min4.5 bar2 x 1.12 x 5.41 ph 230v 50 hz1/2" - 1"1 1/4”22mm98kg
FV80/20T120 l/min5.8 bar2 x 1.52 x 6.11 ph 230v 50 hz1/2" - 1"1 1/4”22mm100kg

contact us now with your requirements

your requirements

Please fill out the form below so we can accurately quote for your system requirements.

Why do we need this information?

For us to be able to calculate a booster set correctly we need to understand the number of outlets in your property that will be drawing pressure from the system. Once we have this information we can then calculate the number of “Loading Units” required required for your system. from here we can then determine the total pressure and litres per minute your booster set will need to deliver.
