AQUAPOD MINI

the dpt aquapod mini

The DPT AquaPod Mini is a below ground, self-contained, cold water booster set which comes pre-assembled as a complete unit. The system has been specifically designed for applications where clients are faced with limited space and an underground solution is required.

Using the latest technology Direct Pumps and Tanks can offer a modern system that overcomes many challenges associated with underground plant rooms, with unique features and simple maintenance the AquaPod Mini is a low cost solution for space restricted requirements.

product applications

DOMESTIC

HOSPITALITY

COMMERCIAL

INDUSTRIAL

PICKUP

Product ready for collection within 2-3 days

Delivery

Product shipped nationwide within 2-3 days

Support

Product support available between 8:30am -5pm

  • Flow rates up to 120 l/m
  • Underground application
  • Storage up to 1200 litres
  • Variable speed inverters
Contact us for pricing

The AquaPod Mini comes fully assembled and can be installed under any level surface such as a driveway, garden, or car park. This maximises the space available without the need for expensive underground plant rooms or separate buildings to house a cold water booster set unit. The Aqua Pod Mini contains WRAS approved pumps and is enclosed in a WRAS approved, durable GRP housing.

The outer chamber contains a reinforced support structure to provide you with a rock solid enclosure for your pump system. The tank is lowered on to a flat continuous foundation and then a lean mix backfill can be poured around the chamber. A slab can then be cast directly on to the AquaPod cover or a pre-cast slab can be placed over the top.

product features

  • 2000 below-ground GRP chamber
  • Above-ground GRP inverter enclosure
  • WRAS approved pumps
  • WRAS approved inverters
  • Comes with standby and duty assist
  • Digital displays for fault and error reporting
  • Multiple sealed recessed access points
  • Dry run protection

product downloads

AQUAPOD MINI BROCHURE

Click Here

AQUAPOD MINI INSTALL GUIDE

Click Here

AQUAPOD SPECIFICATIONS

AQUAPOD MINI DIMS
Model NumberMid Curve FlowMid Curve PressurekW RatingRunning current (amp)Supply VoltageInlet*OutletOverflow SizeDry Weight
APM/40/10/220180 l/min4.5 bar2 x 0.752 x 3.81ph 230v 50 hz28mm1 1/4”40mm94kg
APM/40/15/220180 l/min6.5 bar2 x 1.12 x 5.21ph 230v 50 hz28mm1 1/4”40mm96kg
APM/80/15/2201120 l/min4.5 bar2 x 1.12 x 5.41ph 230v 50 hz28mm1 1/4”40mm98kg
APM/80/20/2201120 l/min5.8 bar2 x 1.52 x 6.11ph 230v 50 hz28mm1 1/4”40mm100kg
AQUAPOD MINI FEATURES

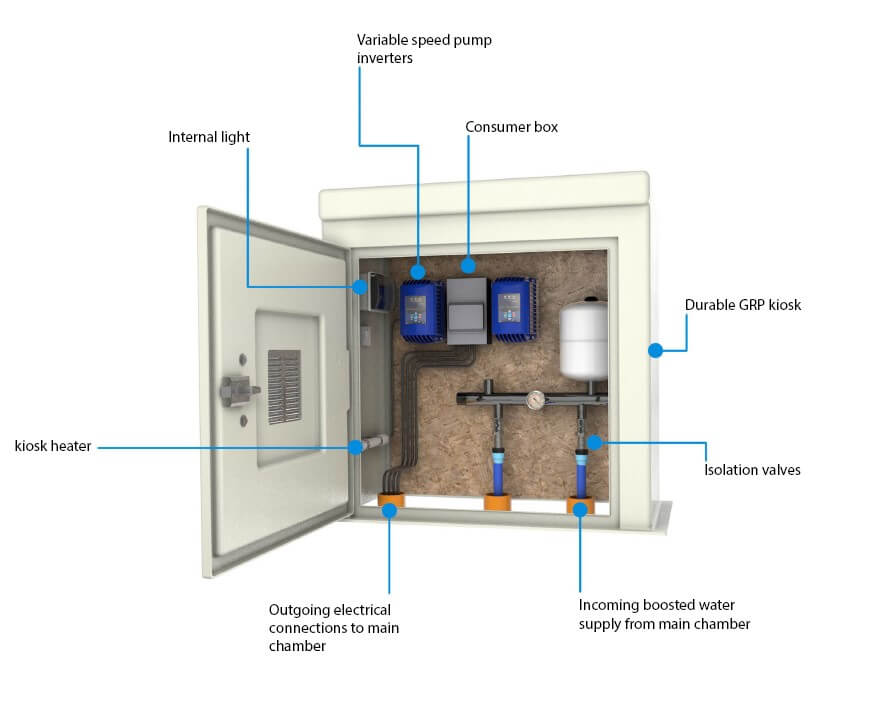

KIOSK FEATURES
AQUAPOD MINI INSTALL

contact us now with your requirements

your requirements

Please fill out the form below so we can accurately quote for your system requirements.

Why do we need this information?

For us to be able to calculate a booster set correctly we need to understand the number of outlets in your property that will be drawing pressure from the system. Once we have this information we can then calculate the number of “Loading Units” required required for your system. from here we can then determine the total pressure and litres per minute your booster set will need to deliver.
