Garden Angel Rainwater Harvesting

The Garden Angel range of rainwater harvesting systems are a compact, simple and cost effective solution designed to make it as easy as possible for the home owner to install.

We have stripped away all complicated aspects of most rainwater harvesting systems currently available on the market. Simply connect power and discharge pipeline, and the system will delivery pressurised, filtered harvested rainwater to outside tap(s).

Available in a range of different capacities, 1000L, 1400L 2200L, 2400L, 3300L and 5000L

product applications

DOMESTIC

COMMERCIAL

PICKUP

Product ready for collection within 48 hours

Delivery

Product shipped nationwide in 48 hours

Support

Product support available between 8:30am -5pm

  • Flow rates up to 60 l/m
  • Includes filter system
  • Storage up to 5000 litres
  • Internal pressure switch
Contact us for pricing

product features

  • Easy trouble free installation
  • 110mm inlet & overflow.
  • Integral self cleansing filter system.
  • Calmed inlet to prevent sediment displacement.
  • Super robust chamber design.
  • Recessed access covers are available as an extra.
  • Reliable 230v submersible pump.

product downloads

GARDEN ANGEL BROCHURE

Click Here

GARDEN ANGEL INSTALL GUIDE

Click Here

Garden Angel - Media

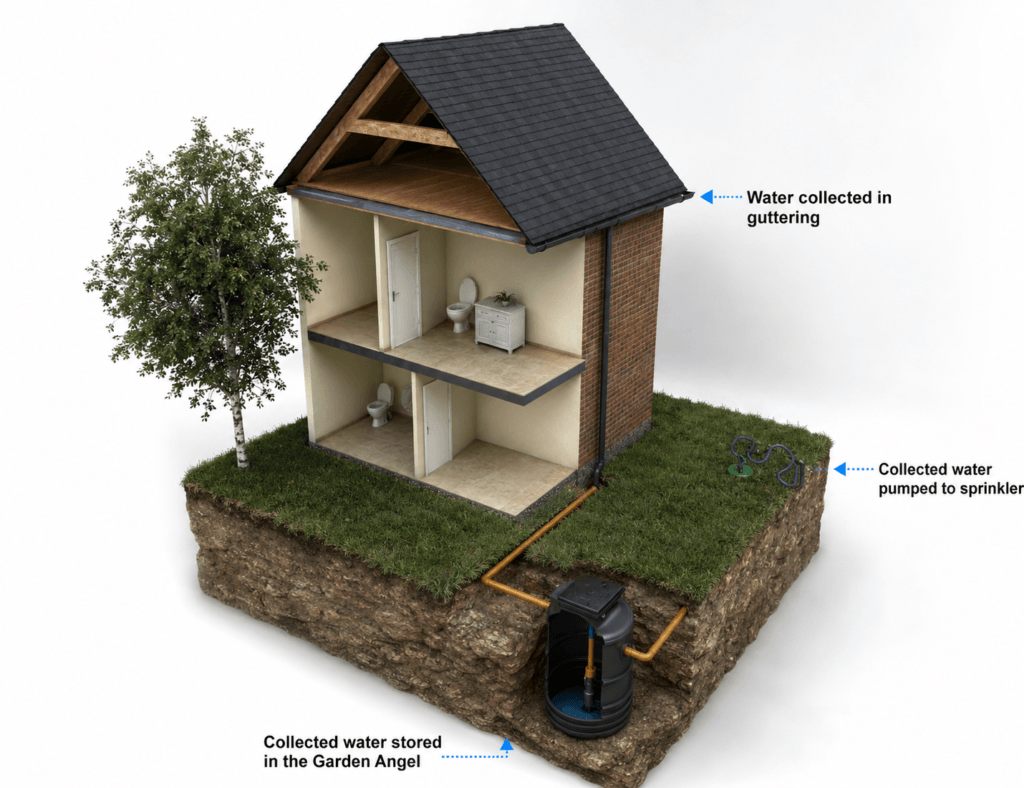

garden angel install example

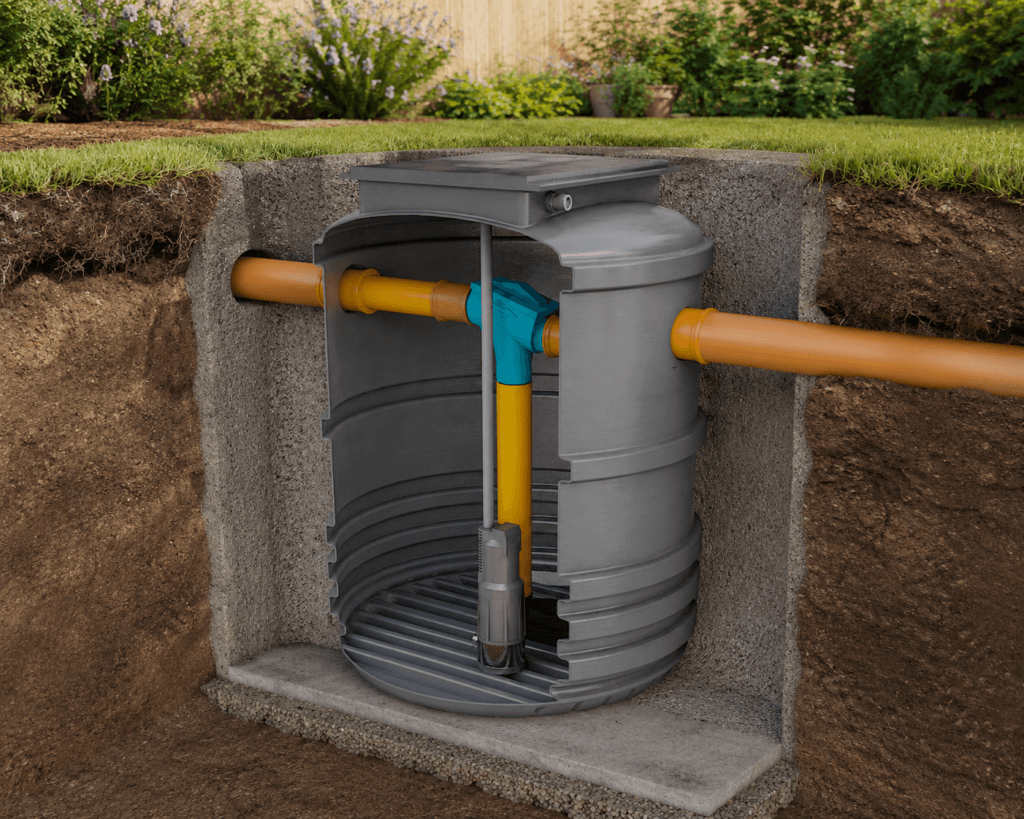

garden angel installed

GARDEN ANGEL Specifications

Model RefDia (mm)Depth (mm)Inlet Depth (mm)Outlet Depth (mm)Access Cover (mm)DWG Files
1000L10001500450516600 X 600DWG
1400L12001500450516600 X 750DWG
2200L12002000450516600 X 750DWG
2400L15001500450516900 X 900DWG
3300L15002000450516900 X 900DWG
5000L1800200015001500900 X 900DWG

contact us now with your requirements

your requirements

Please fill out the form below so we can accurately quote for your system requirements.

Why do we need this information?

For us to be able to calculate a Rain Water Harvesting Station  correctly we need to understand a few key points of information. Please use the form to the left to help us quote for your project.

Key

Roof Area – The total square meter measurement of the roof

Number of WC – Self explanatory.

Number of Washing Machines – Self explanatory.

Number of Outside Taps – Self explanatory.

Number of floors – Self explanatory.
