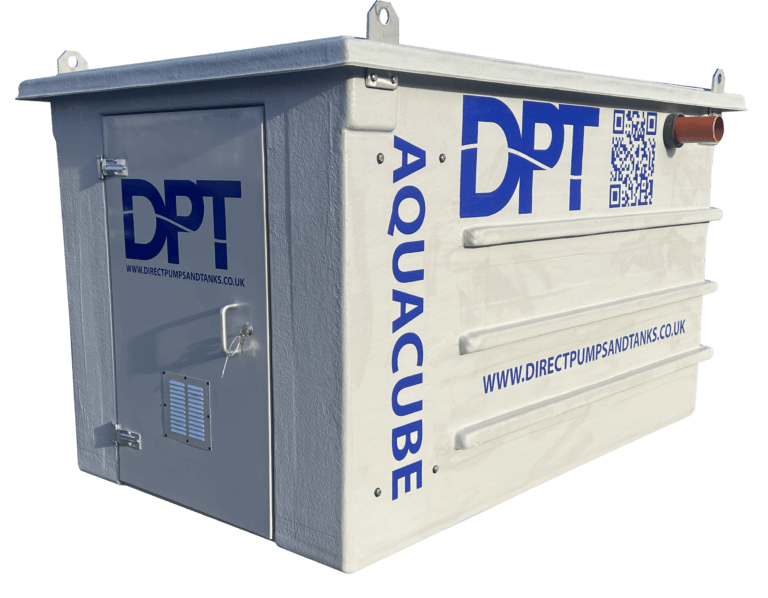

The DPT AquaCube Rainwater Havesting System

Description

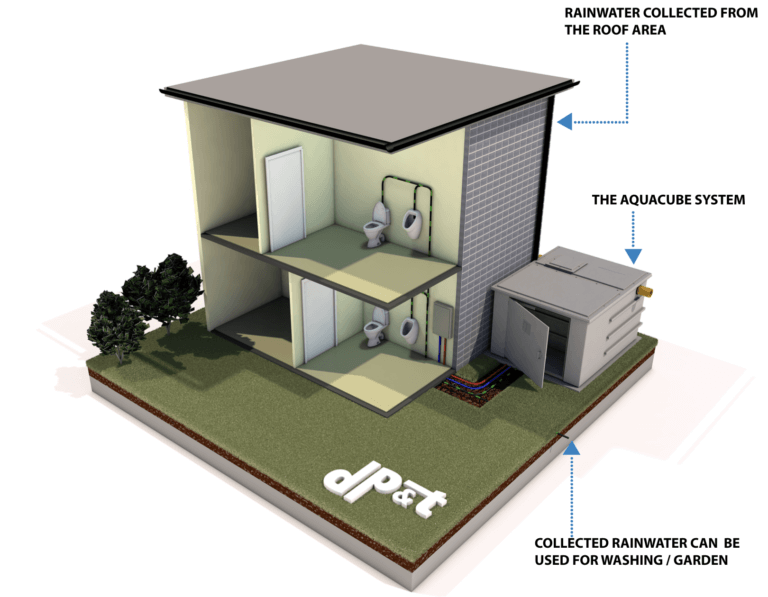

The AquaCube has been designed to provide a self-contained, pre-assembled rainwater harvesting system that comes in two different sizes, 3375 litres and 4500 litres with larger options available upon request.

The system comes with all pumps, filters, and controls in one unit. This allows for a simple and straight forward installation with true ‘plug and play’ functionality for your rainwater harvesting system.

Our AquaCube system can be used across various vertical markets and multiple building types. The system is perfectly suited for both new builds and existing retrofit sites.

product features

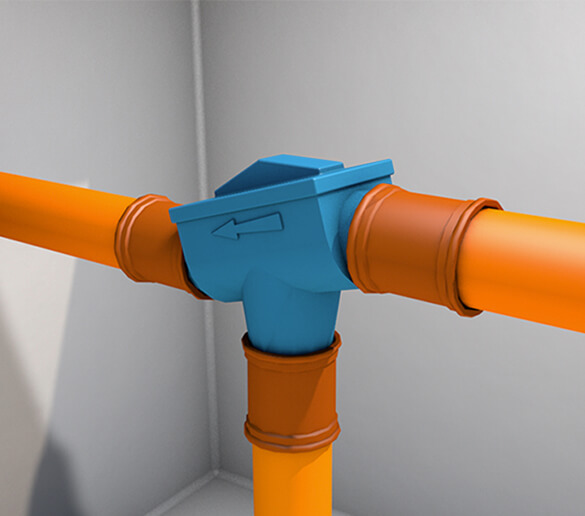

  • Equipped with anti-odour siphon
  • Auto checking of valves every 24 hours
  • Auto changing of water every week
  • Wall mount bracket
  • Water level sensor with 20m cable
  • Rainwater is used as priority over mains
  • Pressure and flow control
  • designated terminal area
  • Full “start-stop” system
  • LCD panel with fault reporting

product downloads

AQUACUBE BROCHURE

Click Here

AQUACUBE SYSTEM - MEDIA

AQUACUBE SYSTEM DETAILS

Capacity (Litres)43205760
Dimensions (mm)1618 H x 1702 W x 2702 L1618 H x 2202 W x 2702 L
Weight (kg)375525
ColourGreyGrey
Rainwater Inlet Size110 mm110 mm
Rainwater Overflow Size110 mm110 mm
Pump Discharge1”1”
Power1.1kW / 1.3kW1.1kW / 1.3kW
Voltage220 - 240v220 - 240v
Pump TypeIRM 3 / IRM 5IRM 3 / IRM 5

contact us now with your requirements

your requirements

Please fill out the form below so we can accurately quote for your system requirements.

Why do we need this information?

For us to be able to calculate a Rain Water Harvesting Station  correctly we need to understand a few key points of information. Please use the form to the left to help us quote for your project.

Key

Roof Area – The total square meter measurement of the roof

Number of WC – Self explanatory.

Number of Washing Machines – Self explanatory.

Number of Outside Taps – Self explanatory.

Number of floors – Self explanatory.
