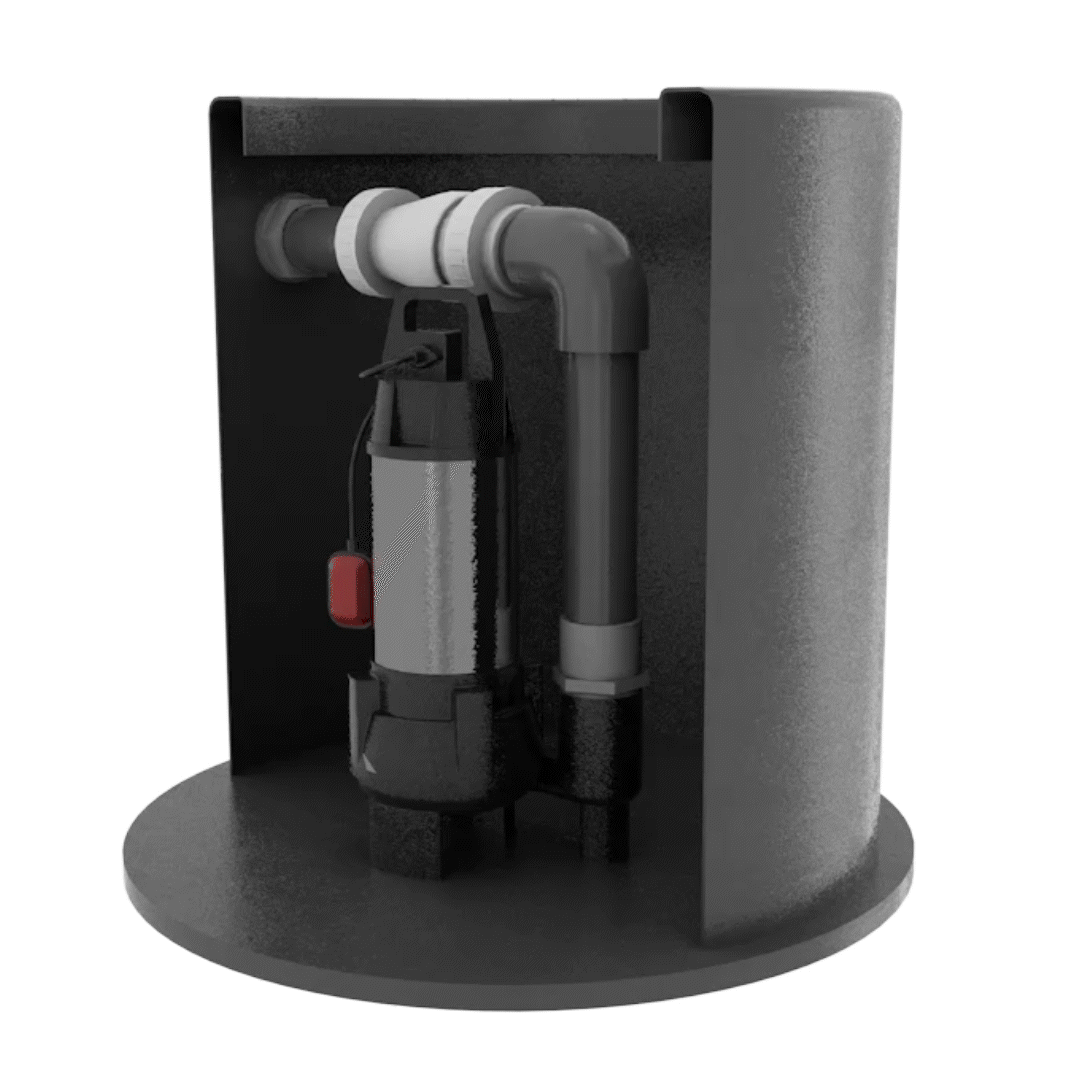

micro spin
micro pump station
hippo 50 pump
micro curve
micro system
Previous
Next

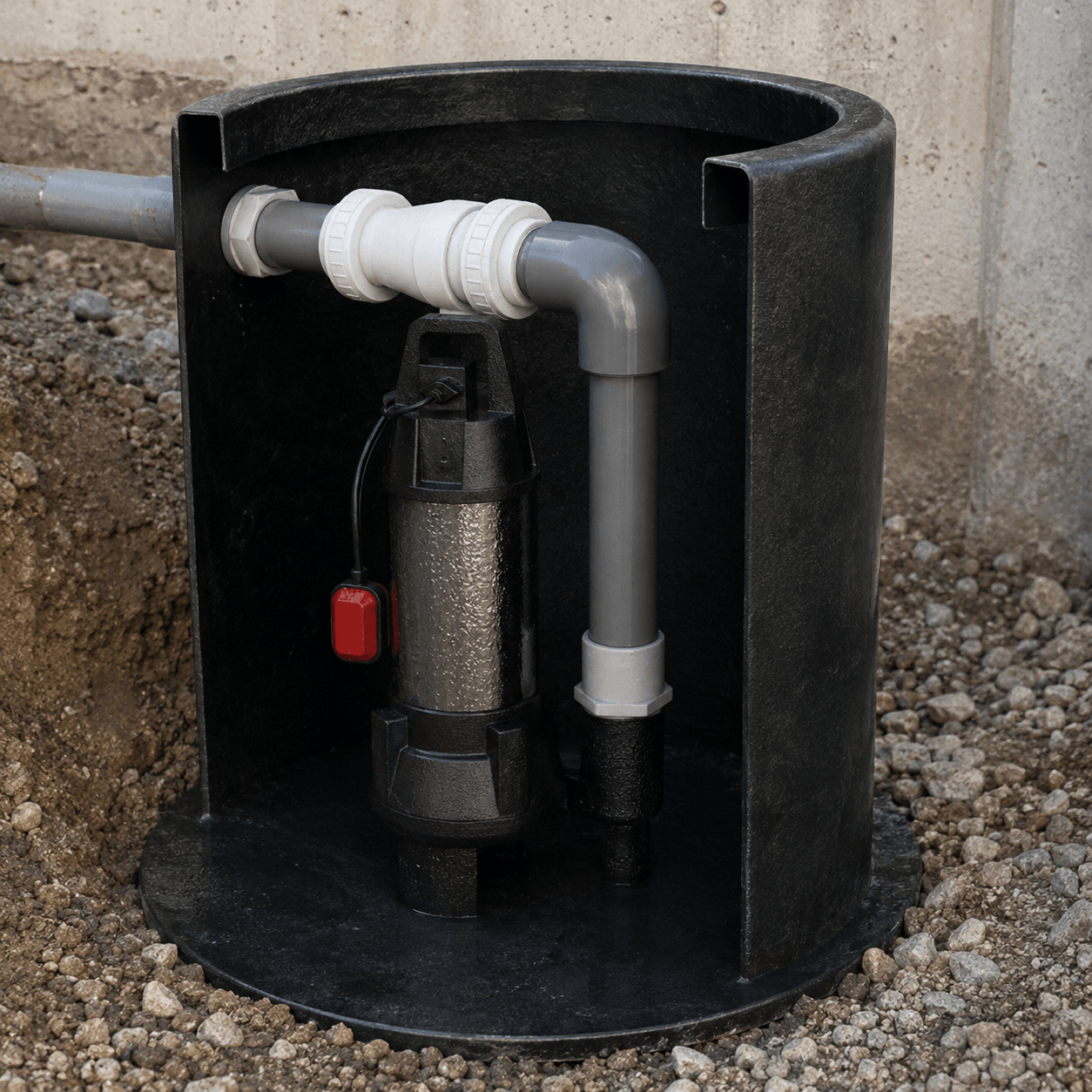

MICRO FOUL WATER PUMP STATION

Description

The Micro Foul Water Pump Station is a package pump station designed to collect foul water from basements and ground floor extensions. A common application would be the foul sewage water coming from an annex or a property extension etc.

The Micro Foul Water Pump Station has been specially designed to ensure an easy, problem free installation. The station allows for one or two 110mm inlets, which are to be drilled on site with the seals supplied loose.

The system comes complete with a pump, all internal pipework and a pedestrian rated cover and frame, and cable duct.

The Micro Foul Water Pump Station is designed to pump through a 63mm pump main as the chamber’s outlet terminates in a 2”male BSP thread.

product features

  • HDPE chamber with flanged bottom
  • Vortex pump with solid handling up to 50mm
  • 1 Year warranty (terms apply)
  • Non-return valve and internal pipework included
  • Ideal for sewage and grey water application
  • Can be paired with high-level alarms and telemetry systems

product downloads

Micro Pump Station BROCHURE

Click Here

Micro Pump Station - Pump Options

6VX PUMP

Up to 6 meters head
  • Vortex Pump
  • Up to 6 meters head
  • 5.5 litres per second

10VX PUMP

Up to 10 meters head
  • Vortex Pump
  • Up to 10 meters head
  • 7.9 litres per second

MC PUMP

Up to 15 meters head
  • Macerator Pump
  • Up to 15 meters head
  • 1.8 litres per second

Micro Pump Station - chamber options

190 Litres

MDPE Chamber
  • 610mm x 635mm
  • Pedestrian Rated Cover
  • Includes Internal Pipework

300 litres

MDPE Chamber
  • 610mm x 1000mm
  • Pedestrian Rated Cover
  • Includes Internal Pipework

450 litres

MDPE Chamber
  • 610mm x 1500mm
  • Pedestrian Rated Cover
  • Includes Internal Pipework

600 litres

MDPE Chamber
  • 610mm x 2000mm
  • Pedestrian Rated Cover
  • Includes Internal Pipework
micro pump stations

Micro Pump Station - MEDIA

Micro Pump Station - SPECIFICATIONS

MICRO SYSTEM DIMENSIONS

Chamber DimensionsAccess CoverDWG Files
DiameterHeightCapacitySizeRatingDownloads
610mm635mm190 Litres450mmPedestrianDWG
610mm1000mm300 Litres450mmPedestrianDWG
610mm1500mm450 Litres450mmPedestrianDWG
610mm2000mm600 Litres450mmPedestrianDWG

PUMP TECHNICAL DETAILS

Model Ref6VX10VXMC
Impeller TypeVortexVortexMacerator
Power Supply230v 1ph 50hz230v 1ph 50hz230v 1ph 50hz
Rated Power0.3kW0.75.kw1.2kW
Rated Current1.9A4.0A9.2A
Max Head6M10M16M
Max Flow Rate5.5 l/s7.9 l/s1.8l/s
Cable Length10m10m10m
Free Passage50mm50mmMacerator

contact us now with your requirements

your requirements

Please fill out the form below so we can accurately quote for your system requirements.

Why do we need this information?

For us to be able to calculate a pump station correctly we need to understand a few key points of information. Please use the form to the left to help us quote for your project.

Key

Rising Main – distance from the chamber to the sewer (meters)

Head – The height from the bottom of the chamber to the sewer

People – The maximum occupancy of the property

Application – Please state if this is for foul or surface water
