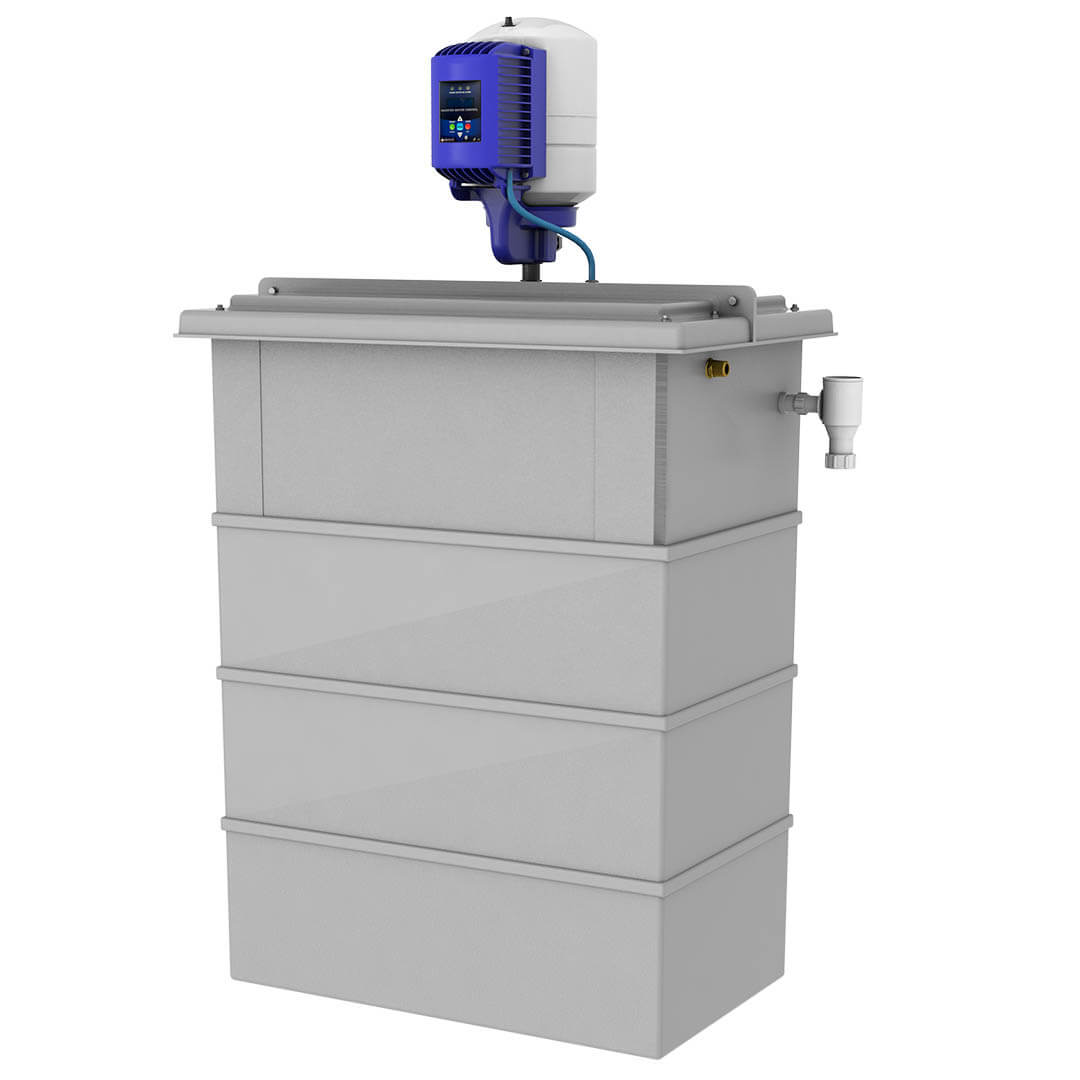

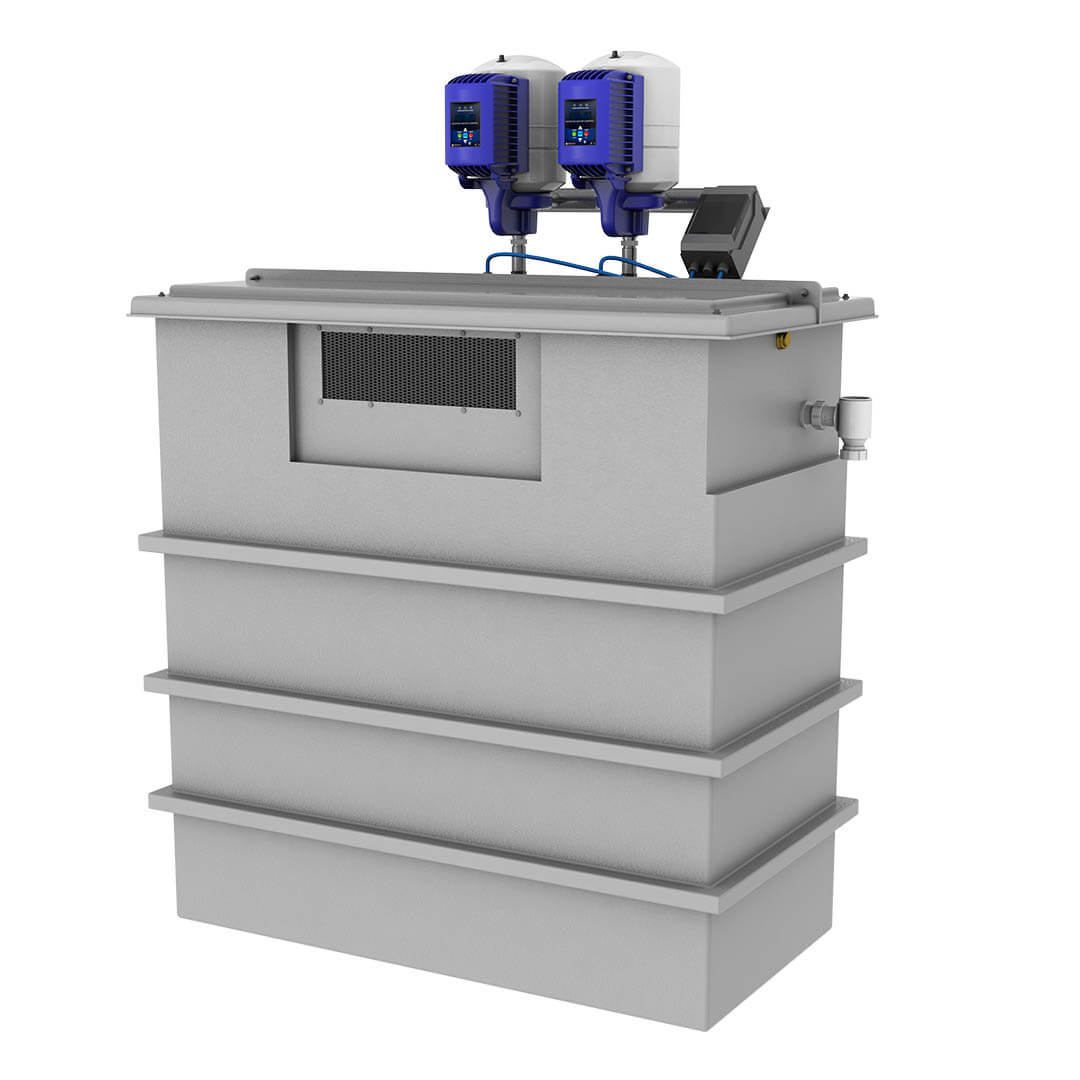

FLYVAR COMPACT BOOSTER SET

The DPT FlyVar Compact booster set is specifically designed to maximise your water storage and boost your water pressure while taking up minimal space at your location. Each FlyVar Compact booster set features WRAS approved submersible pumps and a GRP tank for total peace of mind.

Each variable speed pump consumes low levels of energy and are whisper quiet. The FlyVar booster set comes in single and twin pump configuration and are available with duty assist and duty standby.

product applications

DOMESTIC

HOSPITALITY

COMMERCIAL

INDUSTRIAL

PICKUP

Product ready for collection within 2-3 days

Delivery

Product shipped nationwide in 2-3 days

Support

Product support available between 8:30am -5pm

Flow rates up to 266 l/m
Pressure to 8.0 bar

Storage up to 7500 litres
Variable speed inverters

product features

WRAS approved pump and tank
Digital status display for alerts and reporting
GRP water storage tank as standard
CAT 5 options available on all tanks
Variable speed stainless steel submersible pump
High flow inlet valve
25mm tank insulation
Common alarm volt free contact
low water level pump protection device
Bluetooth connectivity

product downloads

FLYVAR COMPACT BROCHURE

Click Here

FLYVAR COMPACT INSTALLATION GUIDE

Click Here

PERFORMANCE AND MATERIALS

Description	Values
Flow range single pump	50 - 133 litres / min
Flow range twin pump (Mid-Curve)	100 - 266 litres / min
Pressure range (Mid-Curve)	3.0 - 6.6 bar
Max system pressure	10 bar
Max system temperature	23°C
Inlet size	22mm - 28mm BSP
Outlet size	1” or 1 ½”BSP
Power supply	230 /1/50
Control type	Wireless Bluetooth Technology
Tank construction	25mm insulated GRP
Pumps	AISI 304 stainless steel

FLYVAR TECHNICAL CHART

Model Number	Mid-Curve Flow	Mid-Curve Pressure	Kw Rating	Amps	Supply Voltage	Inlet	Outlet	Overflow
FV1-3040-175	50	3	0.55	3.5	1ph 230v 50 hz	22mm	1 "	42mm
FV1-3040-300	50	3	0.55	3.5	1ph 230v 50 hz	22mm	1 "	42mm
FV1-3040-375	50	3	0.55	3.5	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3040-440	50	3	0.55	3.5	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3040-490	50	3	0.55	3.5	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3040-575	50	3	0.55	3.5	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3040-650	50	3	0.55	3.5	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3040-750	50	3	0.55	3.5	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3040-800	50	3	0.55	3.5	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3040-1050	50	3	0.55	3.5	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3040-1250	50	3	0.55	3.5	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3040-1650	50	3	0.55	3.5	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3040-2250	50	3	0.55	3.5	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3060-175	50	4.5	0.75	4	1ph 230v 50 hz	22mm	1 "	42mm
FV1-3060-300	50	4.5	0.75	4	1ph 230v 50 hz	22mm	1 "	42mm
FV1-3060-375	50	4.5	0.75	4	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3060-440	50	4.5	0.75	4	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3060-490	50	4.5	0.75	4	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3060-575	50	4.5	0.75	4	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3060-650	50	4.5	0.75	4	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3060-750	50	4.5	0.75	4	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3060-800	50	4.5	0.75	4	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3060-1050	50	4.5	0.75	4	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3060-1250	50	4.5	0.75	4	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3060-1650	50	4.5	0.75	4	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3060-2250	50	4.5	0.75	4	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3080-175	50	5.5	1.1	4.7	1ph 230v 50 hz	22mm	1 "	42mm
FV1-3080-300	50	5.5	1.1	4.7	1ph 230v 50 hz	22mm	1 "	42mm
FV1-3080-375	50	5.5	1.1	4.7	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3080-440	50	5.5	1.1	4.7	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3080-490	50	5.5	1.1	4.7	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3080-575	50	5.5	1.1	4.7	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3080-650	50	5.5	1.1	4.7	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3080-750	50	5.5	1.1	4.7	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3080-800	50	5.5	1.1	4.7	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3080-1050	50	5.5	1.1	4.7	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3080-1250	50	5.5	1.1	4.7	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3080-1650	50	5.5	1.1	4.7	1ph 230v 50 hz	28mm	1 "	42mm
FV1-3080-2250	50	5.5	1.1	4.7	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5040-175	75	3.4	0.75	3.8	1ph 230v 50 hz	22mm	1 "	42mm
FV1-5040-300	75	3.4	0.75	3.8	1ph 230v 50 hz	22mm	1 "	42mm
FV1-5040-375	75	3.4	0.75	3.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5040-440	75	3.4	0.75	3.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5040-490	75	3.4	0.75	3.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5040-575	75	3.4	0.75	3.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5040-650	75	3.4	0.75	3.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5040-750	75	3.4	0.75	3.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5040-800	75	3.4	0.75	3.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5040-1050	75	3.4	0.75	3.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5040-1250	75	3.4	0.75	3.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5040-1650	75	3.4	0.75	3.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5040-2250	75	3.4	0.75	3.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5060-175	75	5	1.1	4.8	1ph 230v 50 hz	22mm	1 "	42mm
FV1-5060-300	75	5	1.1	4.8	1ph 230v 50 hz	22mm	1 "	42mm
FV1-5060-375	75	5	1.1	4.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5060-440	75	5	1.1	4.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5060-490	75	5	1.1	4.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5060-575	75	5	1.1	4.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5060-650	75	5	1.1	4.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5060-750	75	5	1.1	4.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5060-800	75	5	1.1	4.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5060-1050	75	5	1.1	4.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5060-1250	75	5	1.1	4.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5060-1650	75	5	1.1	4.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5060-2250	75	5	1.1	4.8	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5080-175	75	6.6	1.1	6.1	1ph 230v 50 hz	22mm	1 "	42mm
FV1-5080-300	75	6.6	1.1	6.1	1ph 230v 50 hz	22mm	1 "	42mm
FV1-5080-375	75	6.6	1.1	6.1	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5080-440	75	6.6	1.1	6.1	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5080-490	75	6.6	1.1	6.1	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5080-575	75	6.6	1.1	6.1	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5080-650	75	6.6	1.1	6.1	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5080-750	75	6.6	1.1	6.1	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5080-800	75	6.6	1.1	6.1	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5080-1050	75	6.6	1.1	6.1	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5080-1250	75	6.6	1.1	6.1	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5080-1650	75	6.6	1.1	6.1	1ph 230v 50 hz	28mm	1 "	42mm
FV1-5080-2250	75	6.6	1.1	6.1	1ph 230v 50 hz	28mm	1 "	42mm
FV1-9040-375	133	3.72	1.5	5.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9040-440	133	3.72	1.5	5.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9040-490	133	3.72	1.5	5.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9040-575	133	3.72	1.5	5.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9040-650	133	3.72	1.5	5.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9040-750	133	3.72	1.5	5.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9040-800	133	3.72	1.5	5.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9040-1050	133	3.72	1.5	5.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9040-1250	133	3.72	1.5	5.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9040-1650	133	3.72	1.5	5.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9040-2250	133	3.72	1.5	5.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9060-375	133	5.39	2.2	9.2	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9060-440	133	5.39	2.2	9.2	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9060-490	133	5.39	2.2	9.2	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9060-575	133	5.39	2.2	9.2	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9060-650	133	5.39	2.2	9.2	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9060-750	133	5.39	2.2	9.2	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9060-800	133	5.39	2.2	9.2	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9060-1050	133	5.39	2.2	9.2	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9060-1250	133	5.39	2.2	9.2	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9060-1650	133	5.39	2.2	9.2	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV1-9060-2250	133	5.39	2.2	9.2	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3040-375	100	3	0.55	2 x 3.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3040-440	100	3	0.55	2 x 3.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3040-490	100	3	0.55	2 x 3.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3040-575	100	3	0.55	2 x 3.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3040-650	100	3	0.55	2 x 3.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3040-750	100	3	0.55	2 x 3.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3040-800	100	3	0.55	2 x 3.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3040-1050	100	3	0.55	2 x 3.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3040-1250	100	3	0.55	2 x 3.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3040-1650	100	3	0.55	2 x 3.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3040-2250	100	3	0.55	2 x 3.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3060-375	100	4.5	0.75	2 x 4	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3060-440	100	4.5	0.75	2 x 4	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3060-490	100	4.5	0.75	2 x 4	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3060-575	100	4.5	0.75	2 x 4	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3060-650	100	4.5	0.75	2 x 4	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3060-750	100	4.5	0.75	2 x 4	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3060-800	100	4.5	0.75	2 x 4	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3060-1050	100	4.5	0.75	2 x 4	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3060-1250	100	4.5	0.75	2 x 4	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3060-1650	100	4.5	0.75	2 x 4	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3060-2250	100	4.5	0.75	2 x 4	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3080-375	100	5.5	1.1	2x 4.7	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3080-440	100	5.5	1.1	2x 4.7	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3080-490	100	5.5	1.1	2x 4.7	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3080-575	100	5.5	1.1	2x 4.7	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3080-650	100	5.5	1.1	2x 4.7	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3080-750	100	5.5	1.1	2x 4.7	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3080-800	100	5.5	1.1	2x 4.7	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3080-1050	100	5.5	1.1	2x 4.7	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3080-1250	100	5.5	1.1	2x 4.7	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3080-1650	100	5.5	1.1	2x 4.7	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-3080-2250	100	5.5	1.1	2x 4.7	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5040-375	150	3.4	0.75	2 x 3.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5040-440	150	3.4	0.75	2 x 3.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5040-490	150	3.4	0.75	2 x 3.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5040-575	150	3.4	0.75	2 x 3.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5040-650	150	3.4	0.75	2 x 3.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5040-750	150	3.4	0.75	2 x 3.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5040-800	150	3.4	0.75	2 x 3.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5040-1050	150	3.4	0.75	2 x 3.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5040-1250	150	3.4	0.75	2 x 3.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5040-1650	150	3.4	0.75	2 x 3.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5040-2250	150	3.4	0.75	2 x 3.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5060-375	150	5	1.1	2 x 4.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5060-440	150	5	1.1	2 x 4.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5060-490	150	5	1.1	2 x 4.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5060-575	150	5	1.1	2 x 4.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5060-650	150	5	1.1	2 x 4.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5060-750	150	5	1.1	2 x 4.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5060-800	150	5	1.1	2 x 4.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5060-1050	150	5	1.1	2 x 4.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5060-1250	150	5	1.1	2 x 4.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5060-1650	150	5	1.1	2 x 4.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5060-2250	150	5	1.1	2 x 4.8	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5080-375	150	6.6	1.5	2 x 6.1	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5080-440	150	6.6	1.5	2 x 6.1	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5080-490	150	6.6	1.5	2 x 6.1	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5080-575	150	6.6	1.5	2 x 6.1	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5080-650	150	6.6	1.5	2 x 6.1	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5080-750	150	6.6	1.5	2 x 6.1	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5080-800	150	6.6	1.5	2 x 6.1	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5080-1050	150	6.6	1.5	2 x 6.1	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5080-1250	150	6.6	1.5	2 x 6.1	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5080-1650	150	6.6	1.5	2 x 6.1	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-5080-2250	150	6.6	1.5	2 x 6.1	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-9040-650	266	3.72	1.5	2 x 5.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-9040-750	266	3.72	1.5	2 x 5.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-9040-800	266	3.72	1.5	2 x 5.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-9040-1050	266	3.72	1.5	2 x 5.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-9040-1250	266	3.72	1.5	2 x 5.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-9040-1650	266	3.72	1.5	2 x 5.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-9040-2250	266	3.72	1.5	2 x 5.5	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-9060-650	266	5.39	2.2	2 x 9.2	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-9060-750	266	5.39	2.2	2 x 9.2	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-9060-800	266	5.39	2.2	2 x 9.2	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-9060-1050	266	5.39	2.2	2 x 9.2	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-9060-1250	266	5.39	2.2	2 x 9.2	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-9060-1650	266	5.39	2.2	2 x 9.2	1ph 230v 50 hz	28mm	1 1/2"	42mm
FV2-9060-2250	266	5.39	2.2	2 x 9.2	1ph 230v 50 hz	28mm	1 1/2"	42mm

CAPACITY AND SIZING

Capacity (L)	Pump Configuration	Inlet Size (mm)	Legnth (mm)	Width (mm)	Height (mm)
175	Single	22	630	630	1570
300	Single	22	630	630	2070
375	Single and Dual	28	980	630	1770
440	Single and Dual	28	980	630	2070
490	Single and Dual	28	980	780	1770
575	Single and Dual	28	980	780	2070
650	Single and Dual	28	1230	780	1770
750	Single and Dual	28	1230	780	2070
800	Single and Dual	28	1190	1190	1570
1050	Single and Dual	28	1530	830	2070
1250	Single and Dual	28	1190	1190	2070
1650	Single and Dual	28	1530	1190	2070
2250	Single and Dual	28	2030	1190	2070

contact us now with your requirements

your requirements

Please fill out the form below so we can accurately quote for your system requirements.

Name

Number of Baths

showers

sink

toilets

Kitchen sink

washing machine

dish washer

outside tap

floors

Why do we need this information?

For us to be able to calculate a booster set correctly we need to understand the number of outlets in your property that will be drawing pressure from the system. Once we have this information we can then calculate the number of “Loading Units” required required for your system. from here we can then determine the total pressure and litres per minute your booster set will need to deliver.

Cookie	Duration	Description
cookielawinfo-checkbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.
